soundgen readme

CRAN Version Downloads

R package for sound synthesis and acoustic analysis.
Homepage with help, demos, etc: http://cogsci.se/soundgen.html

Performs parametric synthesis of sounds with harmonic and noise components such as animal vocalizations or human voice. Also includes tools for spectral analysis, pitch tracking, audio segmentation, self-similarity matrices, morphing, etc.

Key functions

For more information, please see the vignettes on sound synthesis and acoustic analysis and other tips at https://cogsci.se/soundgen.html

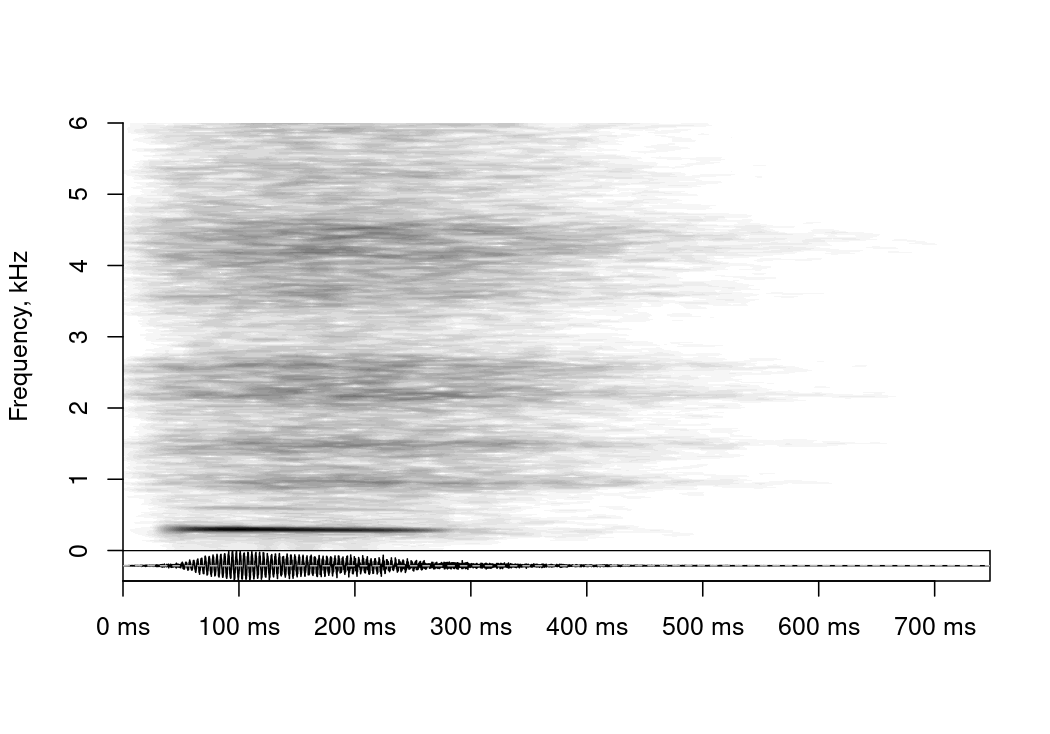

Example of sound synthesis

Use the soundgen() function to create a breathy moan:

s = soundgen(
  sylLen = 230,               # duration of voiced part, ms
  pitch = c(305, 280),        # pitch, Hz (goes down from 305 to 380 Hz)
  ampl = c(0, -20),           # amplitude, dB (gradual fade-out by 20 dB)
  rolloff = -30,              # strong f0, weak harmonics
  temperature = 0.05,         # some stochasticity in generation
  formants = c(260, 960, 1500, 2200,  # F1-F8 formant frequencies, Hz
               2600, 3600, 4200, 4500),
  noise = data.frame(
    time = c(-50, 120, 700),  # time of noise anchors
    value = c(-35, -25, -50)   # noise amplitude, dB
  ),
  rolloffNoise = 0,           # flat noise spectrum before adding formants
  addSilence = 0, samplingRate = 44100, pitchSamplingRate = 44100,
  play = TRUE, plot = TRUE, osc = TRUE, ylim = c(0, 6)
)

Example of acoustic analysis

Use the analyze() function to detect pitch and obtain other spectral descriptives of the sound we have just synthesized:

a = analyze(s, 44100, plot = TRUE, ylim = c(0, 6))

a$detailed[1:5, c('pitch', 'peakFreq', 'harmHeight', 'HNR', 'ampl', 'loudness')]
#>      pitch peakFreq harmHeight      HNR      ampl  loudness
#> 1       NA       NA         NA       NA 0.0352417  3.361811
#> 2 304.0203 300.1361   1368.385 13.57148 0.2611070 11.217886
#> 3 302.1499 300.1361         NA 20.99729 0.5078240 18.005310
#> 4 299.4880 300.1361   1049.828 19.95427 0.5918217 20.944904
#> 5 296.4051 300.1361   1629.551 19.15678 0.5082565 19.372810
colnames(a$detailed)
#>  [1] "duration"           "duration_noSilence" "time"               "amEnvDep"
#>  [5] "amEnvDepVoiced"     "amEnvFreq"          "amEnvFreqVoiced"    "amMsFreq"
#>  [9] "amMsFreqVoiced"     "amMsPurity"         "amMsPurityVoiced"   "ampl"
#> [13] "ampl_noSilence"     "amplVoiced"         "CPP"                "dom"
#> [17] "domVoiced"          "entropy"            "entropySh"          "entropyShVoiced"
#> [21] "entropyVoiced"      "epoch"              "f1_freq"            "f1_width"
#> [25] "f2_freq"            "f2_width"           "f3_freq"            "f3_width"
#> [29] "flux"               "fmDep"              "fmFreq"             "fmPurity"
#> [33] "harmEnergy"         "harmHeight"         "HNR"                "HNRVoiced"
#> [37] "loudness"           "loudnessVoiced"     "novelty"            "noveltyVoiced"
#> [41] "peakFreq"           "peakFreqVoiced"     "pitch"              "quartile25"
#> [45] "quartile25Voiced"   "quartile50"         "quartile50Voiced"   "quartile75"
#> [49] "quartile75Voiced"   "roughness"          "roughnessVoiced"    "specCentroid"
#> [53] "specCentroidVoiced" "specSlope"          "specSlopeVoiced"    "subDep"
#> [57] "subRatio"           "voiced"

Installation

To install the current release from CRAN: install.packages("soundgen")

NB: Make sure all dependencies have been installed correctly! On Macs, you may need to do the following:
