rflsgen
is the R distribution of flsgen
,
a neutral landscape generator that allows users to set targets on
landscape indices. It first relies on Choco-solver to identify landscape
structure satisfying user targets, then uses a stochastic algorithm to
produce landscape rasters.
For more details and tutorials, please visit rflsgen
’s
website: https://dimitri-justeau.github.io/rflsgen/
Java 8+ must be installed in your system to run rflsgen. Download and installation instructions for Java are available here: https://www.oracle.com/java/technologies/javase-downloads.html, or here: https://openjdk.java.net/install/. To provide an R interface to flsgen, which is written in Java, rflsgen relies on rJava, which is a dependency of rflsgen and will be installed automatically. If you have any trouble during the installation of rflsgen due to rJava, please refer to rJava’s documentation: https://rforge.net/rJava/index.html.
rflsgen is available on CRAN, so you can install it from R using the following command:
install.packages("rflsgen")
library(rflsgen)
To install rflsgen from Github, you can use the devtools library (https://www.r-project.org/nosvn/pandoc/devtools.html) and use the following commands in R:
::install_github("dimitri-justeau/rflsgen")
devtoolslibrary(rflsgen)
You can easily generate a fractal terrain raster using the
flsgen_terrain
function. For example, if you want to
generate a 200x200 fractal terrain with default parameters, use the
following command:
<- flsgen_terrain(200, 200)
terrain plot(terrain)
Say that we want to generate a landscape structure for a 200x200 landscape containing three landscape classes (plus a non focal class), with the following user targets:
Class | NP | AREA | CA | MESH | PLAND |
---|---|---|---|---|---|
0 | [1, 10] | [300, 4000] | [1000, 5000] | 225 | - |
1 | [2, 8] | [200, 4000] | - | - | 40% |
2 | [5, 7] | [800, 1200] | - | - | - |
The first possibility is to create a JSON file
(e.g. target.json
) describing these targets (note that you
can also store this json in a string variable):
{
"nbRows" : 200,
"nbCols" : 200,
"classes" : [
{
"name" : "Class A",
"NP" : [1, 10],
"AREA" : [300, 4000],
"CA" : [1000, 5000],
"MESH" : [225, 225]
},
{
"name" : "Class B",
"NP" : [2, 8],
"AREA" : [200, 4000],
"PLAND" : [40, 40]
},
{
"name" : "Class C",
"NP" : [5, 7],
"AREA" : [800, 1200]
}
]
}
The second possibility is to use rflsgen helper functions:
<- flsgen_create_class_targets(
cls_a "Class A",
NP = c(1, 10),
AREA = c(300, 4000),
CA = c(1000, 5000),
MESH = c(225, 225)
)<- flsgen_create_class_targets(
cls_b "Class B",
NP = c(2, 8),
AREA = c(200, 4000),
PLAND = c(40, 40)
)<- flsgen_create_class_targets(
cls_c "Class C",
NP = c(5, 7),
AREA = c(800, 1200)
)<- flsgen_create_landscape_targets(
ls_targets nb_rows = 200,
nb_cols = 200,
classes = list(cls_a, cls_b, cls_c)
)
Using the flsgen_structure
function, you can generate a
non-spatially-explicit landscape structure:
<- flsgen_structure(targets_file = "examples/targets.json") structure
or
<- flsgen_structure(ls_targets) structure
The result is a JSON-formatted string that contains the generated
structure. It can be easily converted into a data frame with a dedicated
library such as jsonlite
.

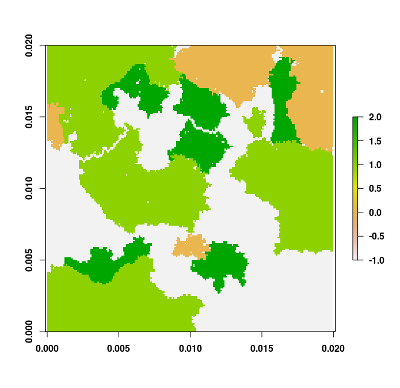

Now, let’s generate a landscape raster from the previously generated
structure. To do so, we use the flsgen_generate
function to
generate a landscape raster from the previously generated landscape
structure:
<- flsgen_generate(structure_str = structure)
landscape plot(landscape)
It is possible to use a mask raster, whose NO_DATA cell will be
unavailable for both focal and non-focal classes. To do so, instead of
specifying the number of rows and columns in the targets, specify the
mask raster with the maskRasterPath
key:
{
"maskRasterPath": "mask.tif"
"classes" : [
{
"name" : "Class A",
"NP" : [2, 30],
"AREA" : [200, 4000],
"PLAND" : [40, 40]
}
]
}
or:
<- flsgen_create_class_targets(
cls_a "Class A",
NP = c(2, 30),
AREA = c(200, 4000),
PLAND = c(40, 40)
)<- flsgen_create_landscape_targets(
ls_targets mask_raster = "mask.tif",
classes = list(cls_a)
)
Instead of generating landscape structure from targets, it is also
possible to extract existing structures from real landscapes and use
them to recreate real composition patterns. To do so, simply use the
flsgen_extract_structure_from_raster
function, indicating
the raster values of focal classes:
<- flsgen_extract_structure_from_raster("existing_raster.tif", focal_classes=c(0, 1)) struct
Please cite the rflsgen R package when using it in publications.
Justeau-Allaire, D., Blanchard, G., Ibanez, T., Lorca, X., Vieilledent, G. & Birnbaum, P. (2022). Fragmented landscape generator (flsgen): A neutral landscape generator with control of landscape structure and fragmentation indices. Methods in Ecology and Evolution, 00, 1– 9. https://doi.org/10.1111/2041-210X.13859
