Grab Bag of GGplot2 Functions.

Description

This package consists of some helper functions for working with ggplot2: geoms, transforms, etc., with no real unifying theme among them.

Legal Mumbo Jumbo

ggallin is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

Author(s)

Steven E. Pav shabbychef@gmail.com

Composition of scale transforms.

Description

A binary infix operator that allows one to compose together two scale transformations. We should have that the transformation atrans %of% btrans first applies btrans, then applies atrans to the results. This is useful for reversing scales, for example, along with other transformations.

Usage

atrans %of% btrans

Arguments

Value

a transformation object that perfroms atrans on the output of btrans.

Author(s)

Steven E. Pav shabbychef@gmail.com

See Also

trans_new.

Examples

set.seed(1234)
# compose transformatins with %of%:
ggplot(data.frame(x=rnorm(100),y=exp(rnorm(100,mean=-2,sd=4))),aes(x=x,y=y)) +
  geom_point() +
  scale_y_continuous(trans=scales::reverse_trans() %of% scales::log10_trans())

geom_cloud

Description

Draw a normal uncertainty cloud as a ribbon

Draws overlapping ribbons of the same identity to create a cloud of (Gaussian) uncertainty. Similar to an errorbar geom in use, but visually less distracting (sometimes).

Geom Proto

Arguments

Details

Assumes that ymin and ymax are plotted at a fixed number of standard errors away from y, then computes a Gaussian density with that standard deviation, plotting a cloud (based on geom_ribbon) with alpha proportional to the density. This appears as a vertical ‘cloud’ of uncertainty. In use, this geom should be comparable to geom_errorbar.

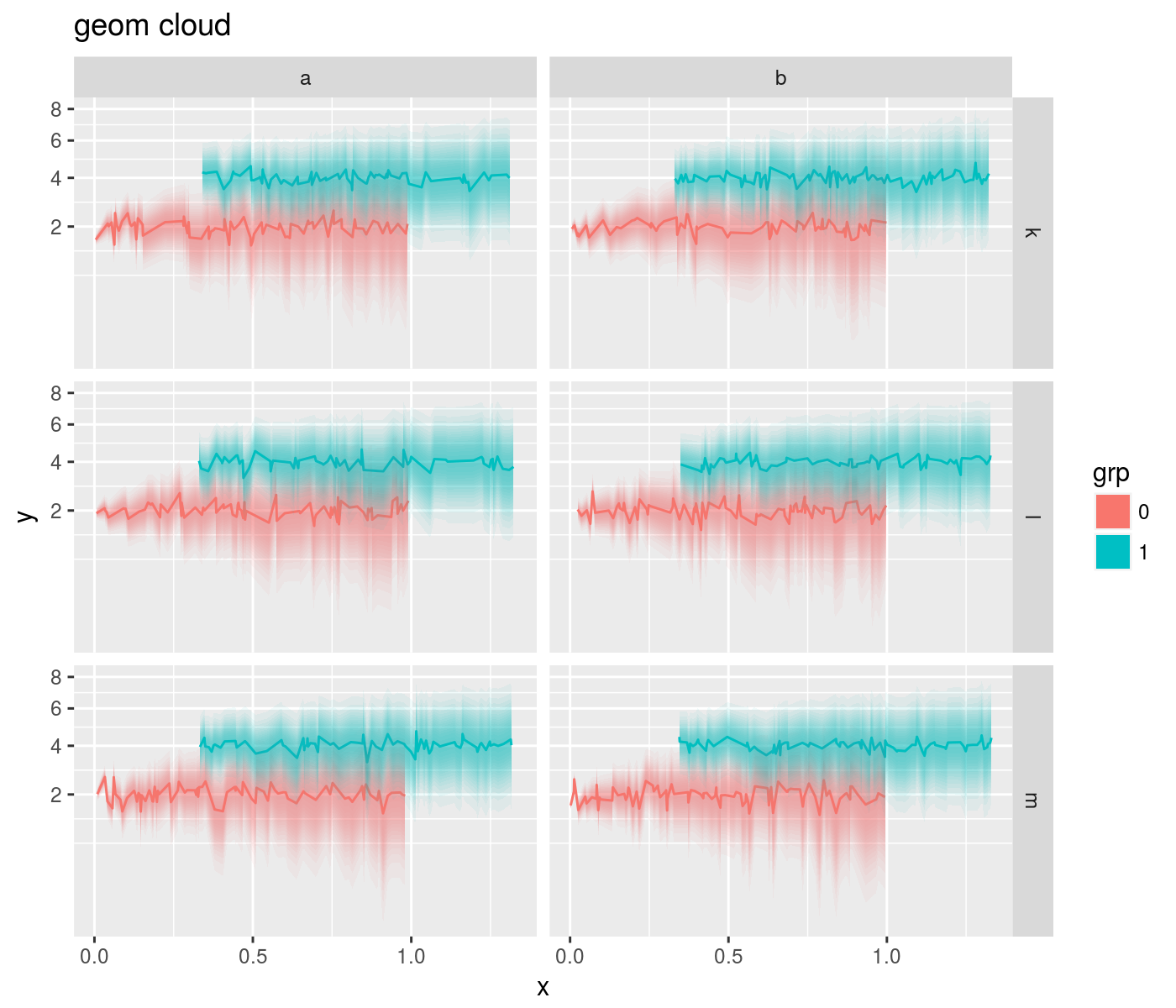

A sample output from geom_cloud:

Aesthetics

geom_cloud understands the following aesthetics (required aesthetics are in bold):

• x

• y

• ymin

• ymax

• fill

Only one of ymin and ymax is strictly required.

Note

This is a thin wrapper on the geom_ribbon geom.

Author(s)

Steven E. Pav shabbychef@gmail.com

See Also

geom_ribbon: The underlying geom

Examples

set.seed(2134)
nobs <- 200
mydat <- data.frame(grp=sample(c(0,1),nobs,replace=TRUE),
  colfac=sample(letters[1:2],nobs,replace=TRUE),
  rowfac=sample(letters[10 + (1:3)],nobs,replace=TRUE))
mydat$x <- seq(0,1,length.out=nobs) + 0.33 * mydat$grp
mydat$y <- 0.25 * rnorm(nobs) + 2 * mydat$grp
mydat$grp <- factor(mydat$grp)
mydat$se  <- sqrt(mydat$x)

ggplot(mydat,aes(x=x,y=y,ymin=y-se,ymax=y+se,color=grp)) +
facet_grid(rowfac ~ colfac) +
geom_line() +
geom_errorbar() +
labs(title='uncertainty by errorbar')

ggplot(mydat,aes(x=x,y=y,ymin=y-se,ymax=y+se,fill=grp)) +
facet_grid(rowfac ~ colfac) +
geom_line() +
geom_cloud(steps=15,max_alpha=0.85) +
labs(title='uncertainty by cloudr')

News for package 'ggallin':

Description

News for package 'ggallin'

Version 0.1.1 (2017-10-01)

• submit to CRAN

Interpolation based scale transforms.

Description

Interpolation based scale transformations. The user supplies x and y (which should be monotonic increasing or decreasing in x) to create a scale transformation based on linear interpolation.

A ‘warp’ transformation is also supported wherein the user supplies x and w where, after sorting on x, the cumulative sum of w are used as the y in an interpolation transformation. Here w are the rate of increase, or ‘weights’.

Usage

interp_trans(x=NULL,y=NULL,data=NULL,na.rm=TRUE,breaks=NULL,format=NULL)

warp_trans(x=NULL,w=NULL,data=NULL,na.rm=TRUE,breaks=NULL,format=NULL)

Arguments

Value

A scale transformation object.

Author(s)

Steven E. Pav shabbychef@gmail.com

See Also

trans_new.

Examples

set.seed(1234)
ggplot(data.frame(x=rnorm(100),y=runif(100)),aes(x=x,y=y)) +
  geom_point() +
  scale_x_continuous(trans=interp_trans(x=seq(-10,10,by=1),y=cumsum(runif(21))))

set.seed(1234)
ggplot(data.frame(x=rnorm(100),y=runif(100)),aes(x=x,y=y)) +
  geom_point() +
  scale_x_continuous(trans=warp_trans(x=seq(-10,10,by=1),w=runif(21)))

# equivalently:
set.seed(1234)
ggplot(data.frame(x=rnorm(100),y=runif(100)),aes(x=x,y=y)) +
  geom_point() +
  scale_x_continuous(trans=warp_trans(data=data.frame(x=seq(-10,10,by=1),w=runif(21))))

# this is like trans_sqrt:
set.seed(1234)
myx <- seq(0,5,by=0.01)
ggplot(data.frame(x=rnorm(100),y=runif(100)),aes(x=x,y=y)) +
  geom_point() +
  scale_y_continuous(trans=interp_trans(x=myx,y=sqrt(myx)))

Various scale transforms.

Description

Various scale transformations.

Usage

ssqrt_trans

pseudolog10_trans

Format

An object of class trans of length 7.

Details

The available transforms:

• ssqrt_trans a signed square root transform appropriate for negative or positive numbers.

• pseudolog10_trans an asinh transformation, which is like a logarithm, but appropriate for negative or positive numbers. This transformation was taken from the Win Vector blog, http://www.win-vector.com/blog/2012/03/modeling-trick-the-signed-pseudo-logarithm/.

Value

A scale transformation object.

Author(s)

Steven E. Pav shabbychef@gmail.com

See Also

trans_new.

http://www.win-vector.com/blog/2012/03/modeling-trick-the-signed-pseudo-logarithm/

Examples

set.seed(1234)
ggplot(data.frame(x=rnorm(100),y=runif(100)),aes(x=x,y=y)) +
  geom_point() +
  scale_x_continuous(trans=ssqrt_trans)

set.seed(1234)
ggplot(data.frame(x=rnorm(100),y=runif(100)),aes(x=x,y=y)) +
  geom_point() +
  scale_x_continuous(trans=pseudolog10_trans)
